  PEDESTALS / 40169 Two Stage Flush Table Pedestal

40169 Two Stage Flush Table Pedestal

Two-Stage Electric Table Pedestal
MINIMUM HEIGHT 1.1 INCHES

Two-stage, through-the-deck, electric table pedestal allows a near flush to the floor minimum height when the inner tubes retract inside the larger outer tube. Larger diameter telescoping tubes give greater stability to this base. Suitable for exterior applications. Maximum capacity is 220 lbs.

#40168 12V Single Pedestal with rotating top (90° lock points)

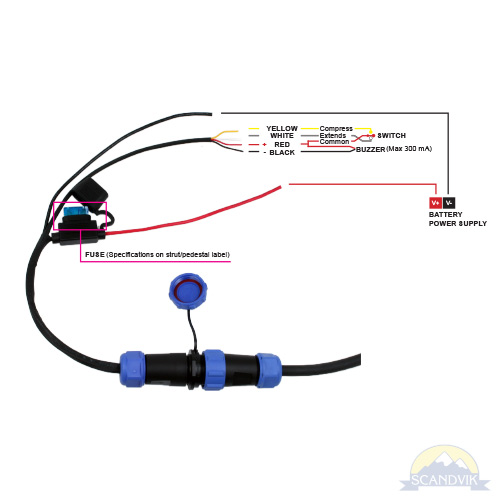

#40169 12V Single Pedestal with 28-3/4” Stroke (Measurements shown in diagram)
#40259 12V Single Pedestal with 28-3/4” Stroke and Black Anodized Finish
#40200 12V Encoded Synchronized Pair
#40189 24V Single Pedestal
#40220 24V Encoded Synchronized Pair

#40170 12V Single Pedestal with 31-1/2” Stroke
#40221 12V Encoded Synchronized Pair
#40190 24V Single Pedestal
#40222 24V Encoded Synchronized Pair

Max. height dimension is 2-3/4” higher below deck dimension is 1-3/8” more below deck than #40169.

SKU# = 40169
Select Your Part #:
Quantity:

* Scandvik, Inc. offers select replacement parts, close-out special items, and/or scratch-and-dent items for sale online. For more information visit "Ordering Guidelines".

   Suggested Similar Items, and Replacement Parts

40173/4 Two Stage Heavy-Duty Table Pedestal

40183/84 Two Stage Table Pedestal

40166/71 Single Stage Table Pedestal

40198 Two Stage Table Pedestal

40175/76 Single Stage Table Pedestal

Linear Actuator 330 Lbs Capacity
