  DOLPHIN BATTERY CHARGERS / Dolphin Pro and Pro-Touch Series Battery Chargers

Three Stage Charging Curve

1. Bulk Stage: A high current is sent to the battery until it reaches approximately 80% of full charge.
2. Absorption Stage: Voltage level is maintained & the current reduced until battery is 100% charged.
3. Float Stage: Voltage & current reduced to maintain battery. Float gives what the battery requires.

Other main features include:

  • LED Display for Programming & Monitoring Functions
  • Temperature sensor for battery compensation
  • Switch mode technology and three stage charging design with Power Supply
  • Modern lightweight and compact design with white aluminum powder coated casing
  • Universal AC input with automatic voltage switching 115/230 VAC 50/60 Hz (24V-80A, 24V-100A and 24V-150A are 230VAC 50/60 Hz ONLY)
  • 4 screw simple install with easy access removable panel
  • ISO 9002 certified manufacturing plant

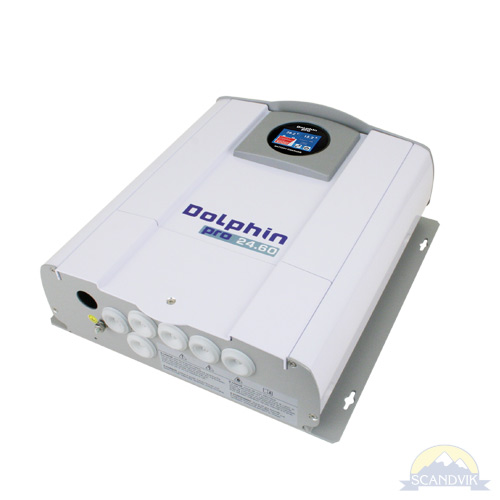

Dolphin Pro and Pro-Touch Series Battery Chargers

The Pro Range, which allows battery banks of up to 1000 amps to be charged, can be equipped with an optional touchview touch screen. It provides an intuitive display of measurements as well as charging phases (boost, absorption, float), the allocated available power and possible operating faults. The pro range is equipped with communication via CAN bus, which means it can be used professionally in all land and industrial energy management sectors.

The Dolphin Series of battery chargers has always been recognized for its outstanding quality, one that the manufacturer is proud to support with a 2 year warranty. Due to production on a wide scale, Dolphin is able to offer high quality, truly international battery chargers, at a reasonable price.

All Dolphin Battery Chargers and accessories are CE marked and manufactured to UL and ABYC specifications.


Download Scandvik's Dolphin Catalog with Specifications.

Click here for more detailed information and to download Dolphin Battery Charger Product Manuals.

12 Volt Chargers
For 12V Chargers 10A through 60A see our Dolphin Premium Chargers.
#99507 12V-70A Dolphin Pro
#99501 12V-90A Dolphin Pro

24 Volt Chargers
#99040 24V-20A (Premium Model)
#99041 24V-30A (Premium Model)
#99502 24V-40A Dolphin Pro
#99503 24V-60A Dolphin Pro
#99505 24V-80A Dolphin Pro (230 VAC 50/60 Hz input voltage only)
#99504 24V-100A Dolphin Pro (230 VAC 50/60 Hz input voltage only)
#99509 24V-150A Dolphin Pro (230 VAC 50/60 Hz input voltage only)

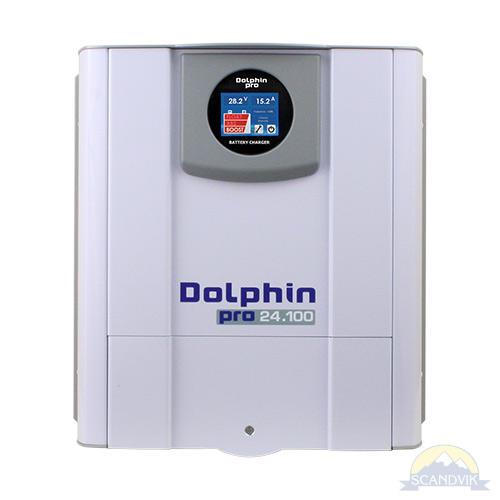

Dolphin Pro-Touch chargers have a #99520 Touchview control panel in-place of the standard display panel on the front of the charger. The Touchview control panel gives the user more information and control of the charger functions.

#99510 12V 90A Dolphin Pro-Touch
#99511 24V 60A Dolphin Pro-Touch
#99512 24V 100A Dolphin Pro-Touch (230 VAC 50/60 Hz input voltage only)

Click here for more detailed information and to download Dolphin Battery Charger Product Manuals.
SKU# = Dolphin Pro BC
Select Your Part #:
Quantity:

* Scandvik, Inc. offers select replacement parts, close-out special items, and/or scratch-and-dent items for sale online. For more information visit "Ordering Guidelines".

   Suggested Similar Items, and Replacement Parts

Dolphin TouchView Controller
Dolphin BatView Monitor
Dolphin Premium Series Battery Chargers
