  ABA HOSE CLAMPS / ABA 304 Stainless Steel Mini Clamps
Bulk #
Bags of 50
Boxed #
Boxes of 10
SAE Size Clamping Range
Inches mm
22008 13508 8 19/64 - 21/64 7.5 - 8.5
22009 13509 9 21/64 - 3/8 8.5 - 9.5
22010 13510 10 3/8 - 7/16 9.5 - 11
22011 13511 11 13/32 - 15/32 10.5 - 12
22012 13512 12 29/64 - 33/64 11.5 - 13
22013 13513 13 1/2 - 35/64 12.5 - 14
22014 13514 14 17/32 - 19/32 13.5 - 15
22015 13515 15 37/64 - 5/8 14.5 - 16
22016 13516 16 19/32 - 43/64 15 - 17
22017 13517 17 5/8 - 45/64 16 - 18

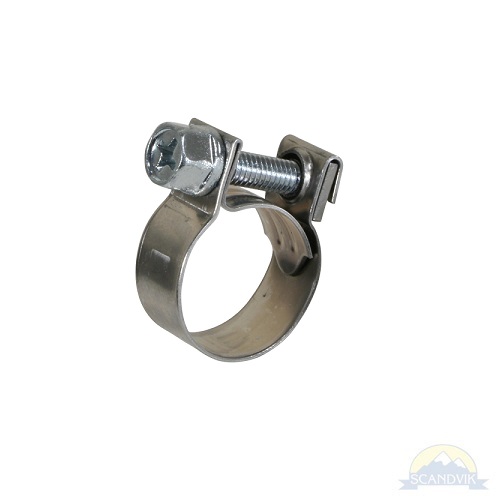

ABA 304 Stainless Steel Mini Clamps

Strong and Durable Materials
The lug for the screw and nut must be stable enough to resist deformation whenever the nut is tightened. This is why they are made of cold rolled strip stainless steel to Swedish Standard SS 1265.

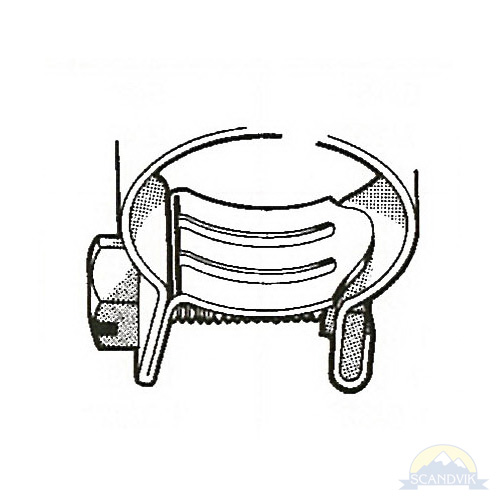

The Nut Stays Put
The nut is retained in the lug, even when the screw has been removed Another practical detail is the hexagonal screw head, which may be tightened using the ABA flexible socket driver.

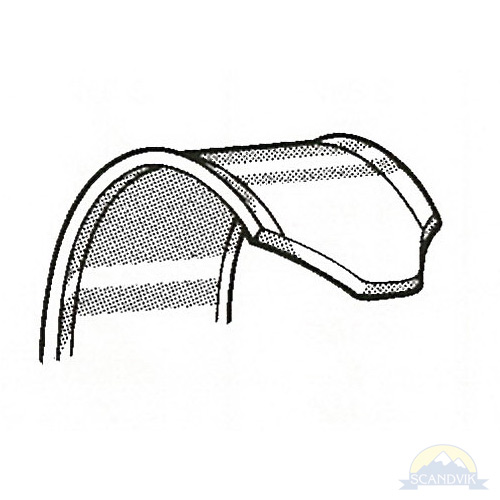

Reinforced Band Tongue
The band tongue underneath is designed with a formed section to prevent it from being deformed and causing leakage.

Small Size But Big Demands
This was the starting point in designing the ABA Mini Clamp. As a result, the Mini features several well-known ABA characteristics including the rounded edges that ensure the clamp grips the hose firmly but gently.

See Bulk# and Box# Chart at bottom left.

SKU# = ABA-304-SS-Mini
Select Your Part #:
Quantity:
